Unbrick TizzBird F20 - Preface


Status:
Bricked device, freezing while booting.

Credits:
Frederic Fitaire, for the unbrick solution.

Unbrick TizzBird F20 - No working links available, searching for:
Telechips VTC Driver
Telechips Firmware Download Utility
Bootloader "lk.rom"
Image "tcc8800st_mtd.tizzbird.img"
Update "TizzBird_F20_update_GMS_V2_20_13072721.tzbird"

Unbrick TizzBird F20 - Telechips VTC Driver installation

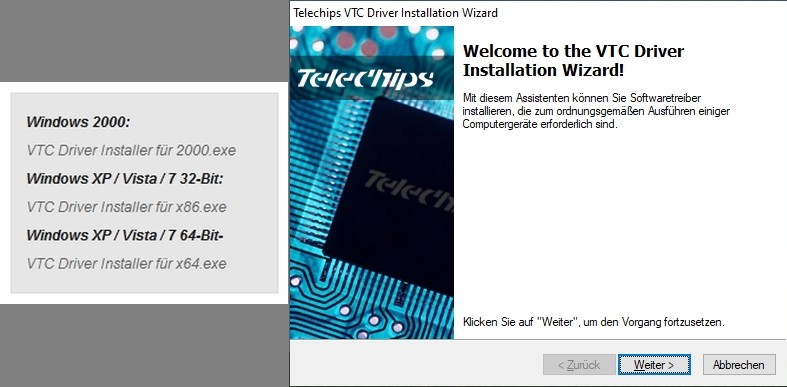

  1. Install Telechips VTC Driver

Unbrick TizzBird F20 - USB-A Connection

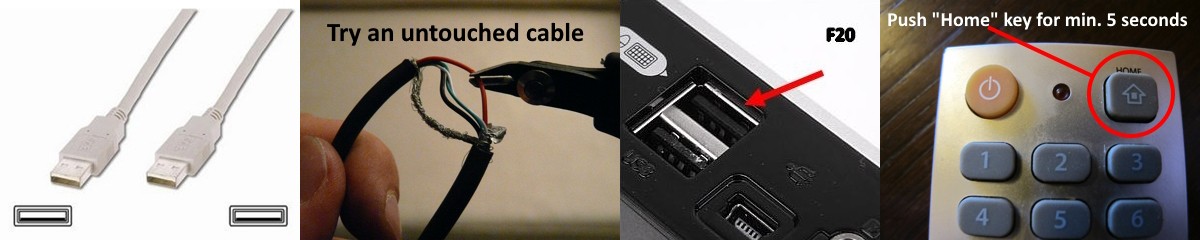

  1. USB-A Connection - Tizzbird F20 to Windows PC

Unbrick TizzBird F20 - Telechips Firmware Download Utility

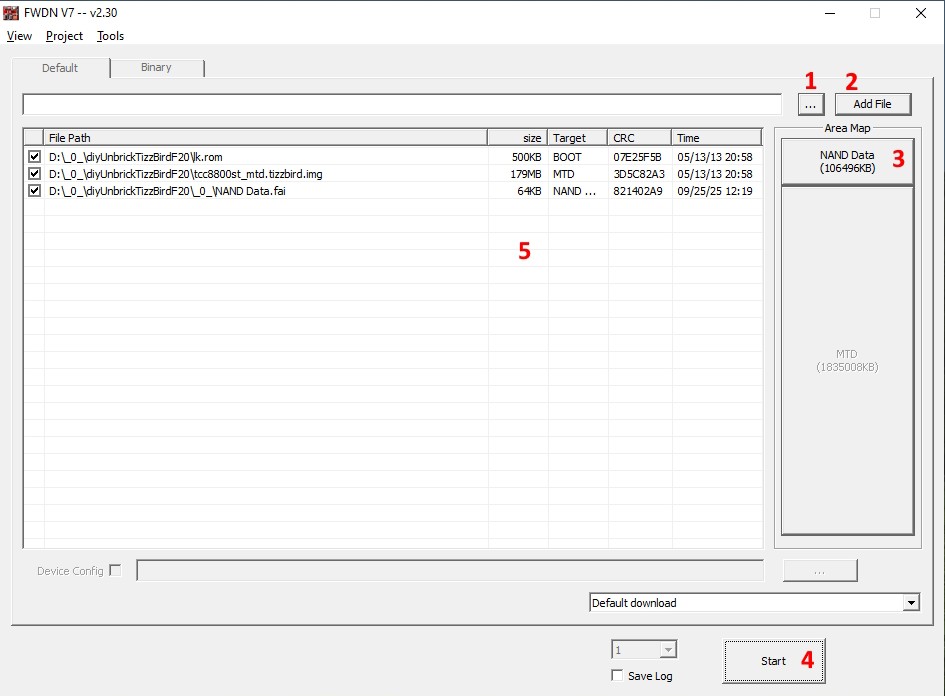

  1. Push(1) and select the file "lk.rom", push(2) to add the file
  2. Push(1) and select the file "tcc8800st_mtd.tizzbird.img", push(2) to add the file
  3. Push(3) and select the folder for the file "NAND Data.fai"
  4. The three files must be listed in the main window(5), file target types are "BOOT", "MTD" and "NAND"
  5. Push(4)to start flashing the Tizzbird F20

Unbrick TizzBird F20 - Done

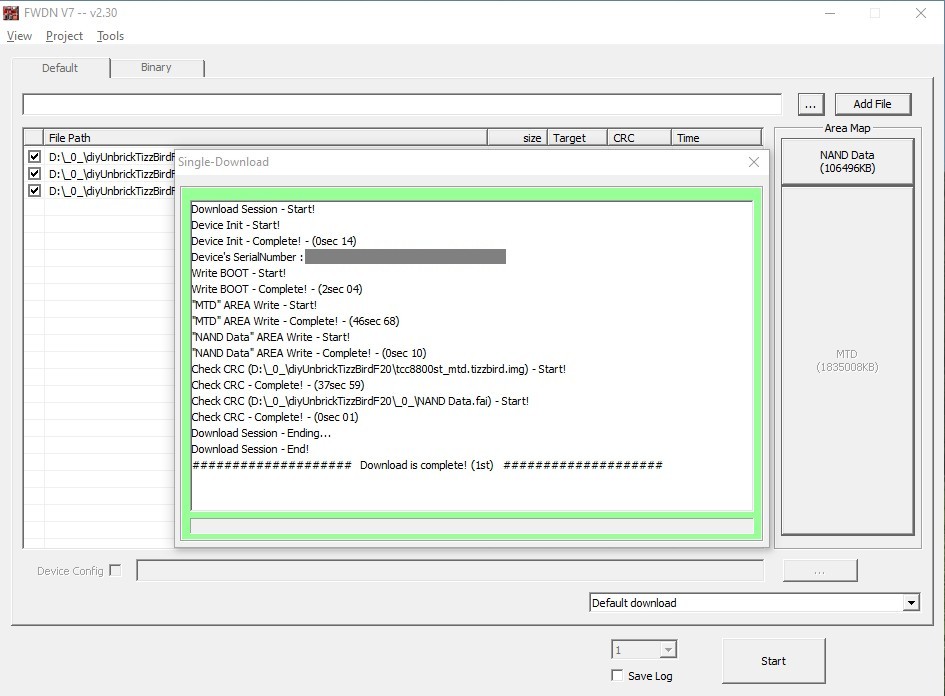

  1. Done. Quit Firmware Download Utility. Remove USB-Cable. Switch off Tizzbird F20
  2. Boot Tizzbird F20 to be sure that everything works fine and to sleep well tonight


Update TizzBird F20


  1. Coming soon
